HT66B_series
Product Introduction
Features & Functions :
- Four channel indepentant isolated output/8 pads.
- Auto-programs and manual adjustment functions.
- Medium and low frequency whole field treatment.
Specifications :
| Dimension | 370 x 270 x 75 (mm) |
| Weight | 1800gm |
| Power supply | 110V/230V AC |
| Channel | 4 independent isolated transformers |
| Input current | 2000mA/110V, 2000mA/230V AC maximum |
| Output current | 0~100mA P to P into 500Ω load |
| Current type | Medium frequency carrier (1K-5KHz) auto or manual modulation |
| Timer | 15, 30 minutes auto off, C(continue) |
| Function mode | Selected by push button "PROGRAM"; MA, MT, MM, B, C, M six functions; P/W, amplitude, P/R auto or manual modulation. |

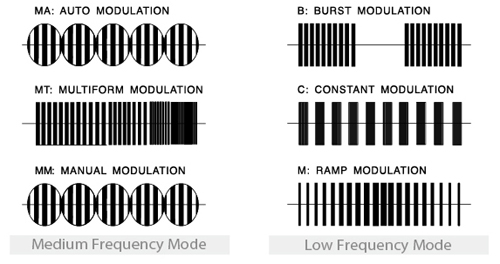

HT66B-4CH Wave form :
