HT338L4_series
Product Introduction
Specifications :
| Dimension | 150 x 110 x 26 (mm) |
| Weight | 186 gm (battery included) |
| Power supply | 230VAC 50Hz (110VAC 60Hz) to DC 9V adaptor or DC 9V battery 1 pcs |
| Channel | 4 independent isolated transformers |
| Input current | 300mA (4CH) DC 9V maximum |
| Output current | 0~120mA P to P into 500Ω load |
| Timer | auto off when program default time countdown zero |
| Pulse form | dual phase square wave |
| Pulse width | 90 / 180 / 270 / 360 micro-second |
| Function mode | "A~F" six function areas total 180 default program modes |
| Intensity | 20 levels |
| Ramp up | 3 seconds (intensity level from "0" to "20" ) |
| LCD Display | timer count down / function area / program mode / intensity levels |
| Buzzer | 4 different reminders 1. correct single beep 2. pay attention triple beep 3. mistake continue beep 4. reminder slow single beep |
Standard Accessories :
| Electrical Stimulator | 1 |
| Stimulator Lead Wire | 4 |
| Self Adhering Electrode | 8 |
| Operating Manual | 1 |
| 9V Battery | 1 |
| 9V DC Adaptor | 1 |

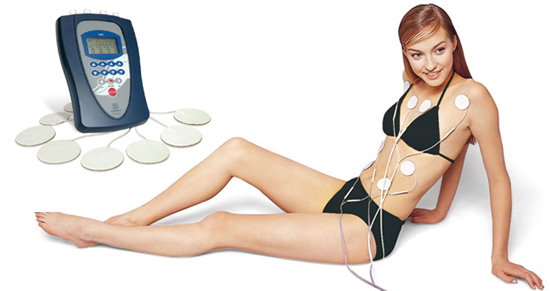

TENS electrode application areas :

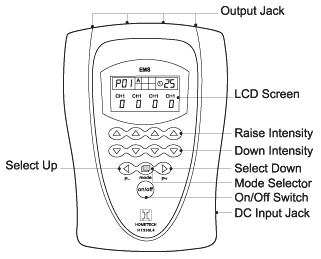

Indicator and Controls :
