HT331BN_series
Product Introduction
Specifications :
| Dimension | 225 x 205 x 65 (mm) |
| Weight | 850gm (battery included) |
| Power supply | 1.5V battery X 6 PCS or AC/DC 9V/0.6A Adaptor |
| Channel | 2(2CH) independent isolated transformers 6(6CH) independent isolated transformers |
| Input current | 600mA DC 9V maximum |
| Output current | 0~120mA P to P into 500Ω load |
| Timer | 15 minutes auto off |
| Function mode | Selected by push switch "FUNCTION", |
| P1 | two modes rate trainning 2Hz, 5Hz |
| P2 | two modes rate trainning 10Hz, 20Hz |
| P3 | two modes rate trainning 50Hz, 104Hz |
| P4 | two modes rate trainning 70Hz, 127Hz |
| P5 | two modes rate trainning 185Hz, 300Hz |
Standard Accessories :
|
.jpg "pi_22.jpg")
TENS electrode application areas :
.jpg "ap_38.jpg")

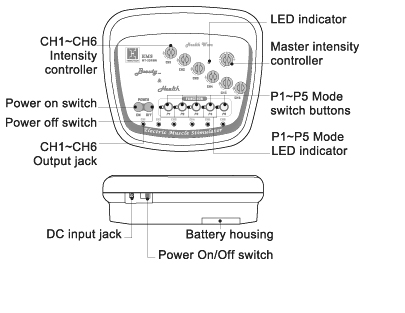

Indicator and Controls: :
