Product Introduction


Features & Functions :

  • Large clear LCD which transmits function situation & operation condition
  • Designed with digital knob converted into analog switch that's convenient to operate
  • Offers 90 programmed modes & 20790 different combination applications
  • Special dynamic scan modulation avoids getting used to the same EMS

Specifications :

Dimension 225 x 205 x 65;41 (mm)
Weight 860gm (battery included)
Power supply 1.5V battery(SUM-2)x6 pcs or adaptor
230V 50Hz (110V AC 60Hz) to DC 9V
Channel 4(4CH) independent isolated transformers
6(6CH) independent isolated transformers
8(8CH) independent isolated transformers
Input current 300mA(4CH) ; 400mA(6CH) ; 500mA(8CH) ;
DC 9V maximum
Output current 0~120mA P tp P into 500Ω load
Timer 5~60 mins auto off and continuous
Output Control per rotary switch control 2 channels
Ramp up 10 seconds(intensity level from "0" to "20")
LCD display Timer count down/program mode/on time/ off
time/rate/scan type/scan level/intensity level
Function mode "A1~A9"~"J1~J9" total 90 program modes
♦Rate : 2~150Hz
♦On time : 1...15 seconds
♦Off time : 0...10 seconds(11steps)
♦Scan Value : ± 0~50 % adjustable
♦Scan Type : 7 different types
♦Intensity Level : 20 steps
♦Pulse width : 250uS
Combination forms: 20790 different forms
Buzzer 4 different reminders
1. correct single beep
2. pay attention triple beep
3. mistake continue beep
4. reminder slow single beep

Standard Accessories :

Electrical Stimulator 1
Stimulator Lead Wire 4
Self Adhering Electrode 8
Operating Manual 1
1.5V(SUM-2) Battery 6
Reusable Package 1
AC adaptor(Brand:SCN
Type: 48-090-0600)CE
1

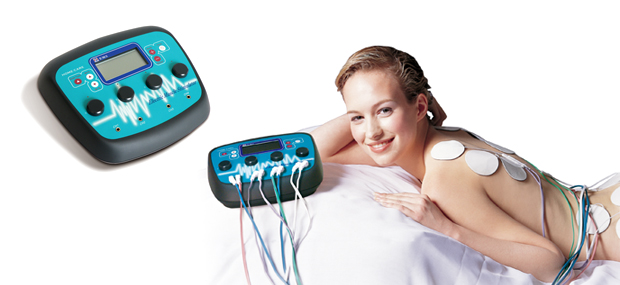

TENS electrode application areas :

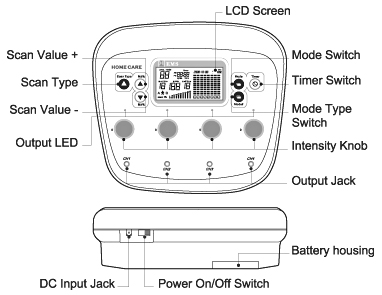

Indicator and Controls :
